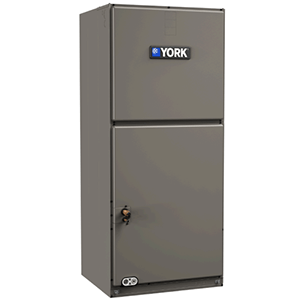

LX, JSC48D5CG2SS1

SKU
JSC48D5CG2SS1
Specifications
Air Handler Model JSC
Dimension 56.75Hx24.5Wx21.44D
Tonnage 4
Fan Motor Constant Airflow ECM
Configuration Shorter Cabinet
Phase 1-Phase
Voltage 208/230
Metering Device BC TXV
CFM 1600
Slab Size 3R-28-12
Cabinet Size D
Brand YORK
Series LX
Parts Warranty Extended 10-Year Limited Parts Warranty
Warranty Notes All limited warranties are subject to terms, conditions and exclusions set forth in the product's limited warranty statement. See applicable limited warranty statement for details.
Brochure jsc_brochure.pdf
Tech Guide jsc_techguide.pdf
User Guide jsc_userguide.pdf
Installation Guide jsc_installguide.pdf
The JSC Air Handler is an upflow-only version of the JHC single-piece air handler. The unit is shorter than the multi-position capable JHC, making it ideal for upflow installations where the 4 or 5 ton JHC might not fit due to height restrictions
